Bayard Alpert 3/4″



Our 3/4″ gauges are supplied with glass or kovar arms and with twin tungsten or single iridium coated filaments. Gauges can also be mounted on flanges and supplied with platinum coating.  See Ion Gauge Operating Details.



  • G75K

    3/4″ Kovar, Iridium Filament

  • G75KC

    3/4″ Kovar, Iridium Filament, Platinum Coated

  • G75KF

    3/4″ Kovar, Iridium Filament, 2 3/4″ Flange

  • G75KF25

    3/4″ Kovar, Iridium Filament, KF25 Flange

  • G75KF40

    3/4″ Kovar, Iridium Filament, KF40 Flange

  • G75KMCF

    3/4″ Kovar, Iridium Filament, Mini Conflat Flange

  • G75KT

    3/4″ Kovar, Twin Tungsten Filaments

  • G75KTA

    3/4″ Kovar, Twin Tungsten Filaments, Brooks Style

  • G75KTC

    3/4″ Kovar, Twin Tungsten Filaments, Platinum Coated

  • G75KTF

    3/4″ Kovar, Twin Tungsten Filaments, 2 3/4″ Flange

  • G75KTKF25

    3/4″ Kovar, Twin Tungsten Filaments, KF25 Flange

  • G75KTMCF

    3/4″ Kovar, Twin Tungsten Filaments, Mini Conflat Flange

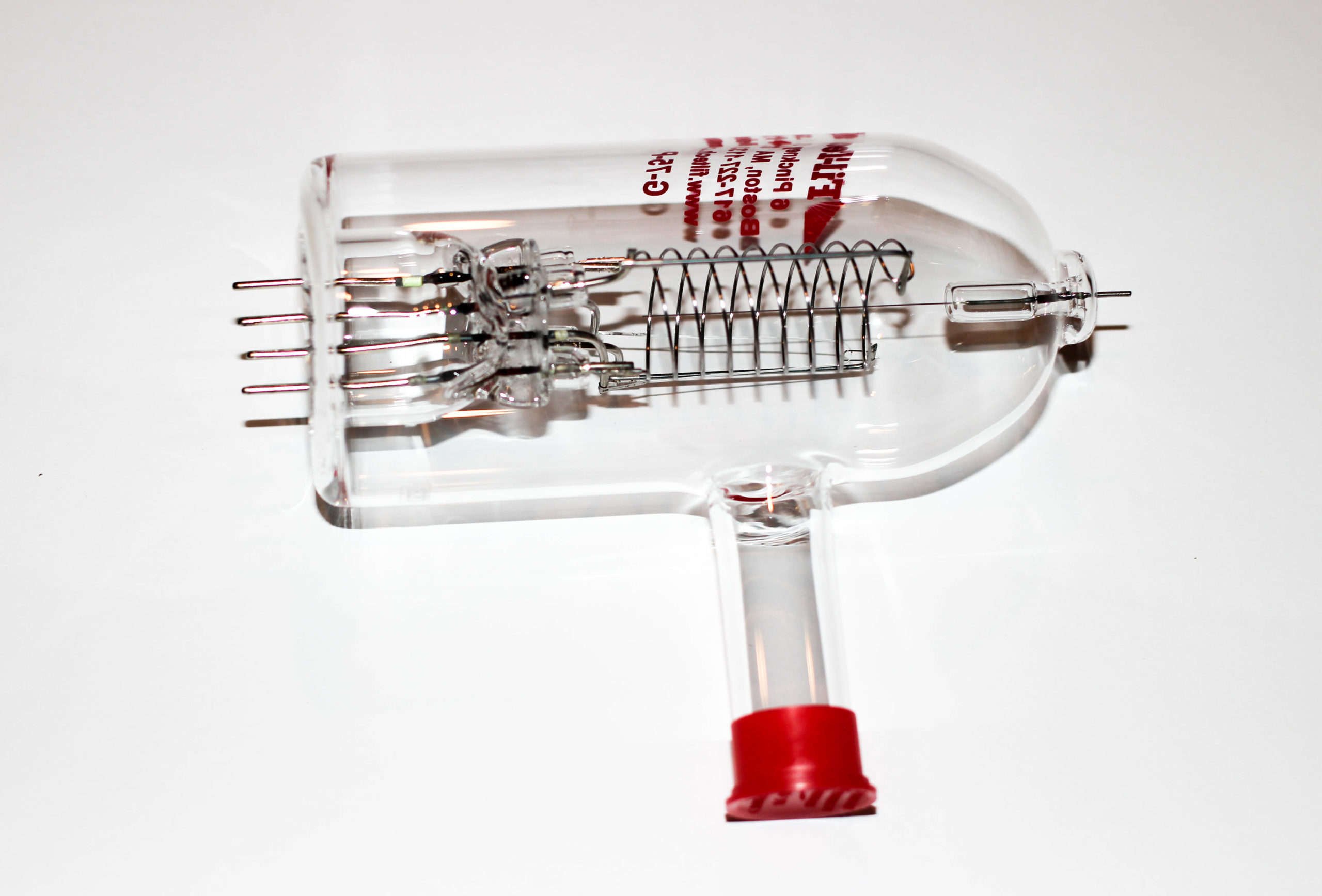

  • G75P

    3/4″ Pyrex, Iridium Filament

  • G75PC

    3/4″ Pyrex, Iridium Filament, Platinum Coated

  • G75PS

    3/4″ Pyrex, Iridium Filament, Pumped and Sealed

  • G75PT

    3/4″ Pyrex, Twin Tungsten Filaments, Axcelis Style, Ion Implantation

  • G75PT-02S

    3/4″ Pyrex, Twin Tungsten, SEN Style Gauge

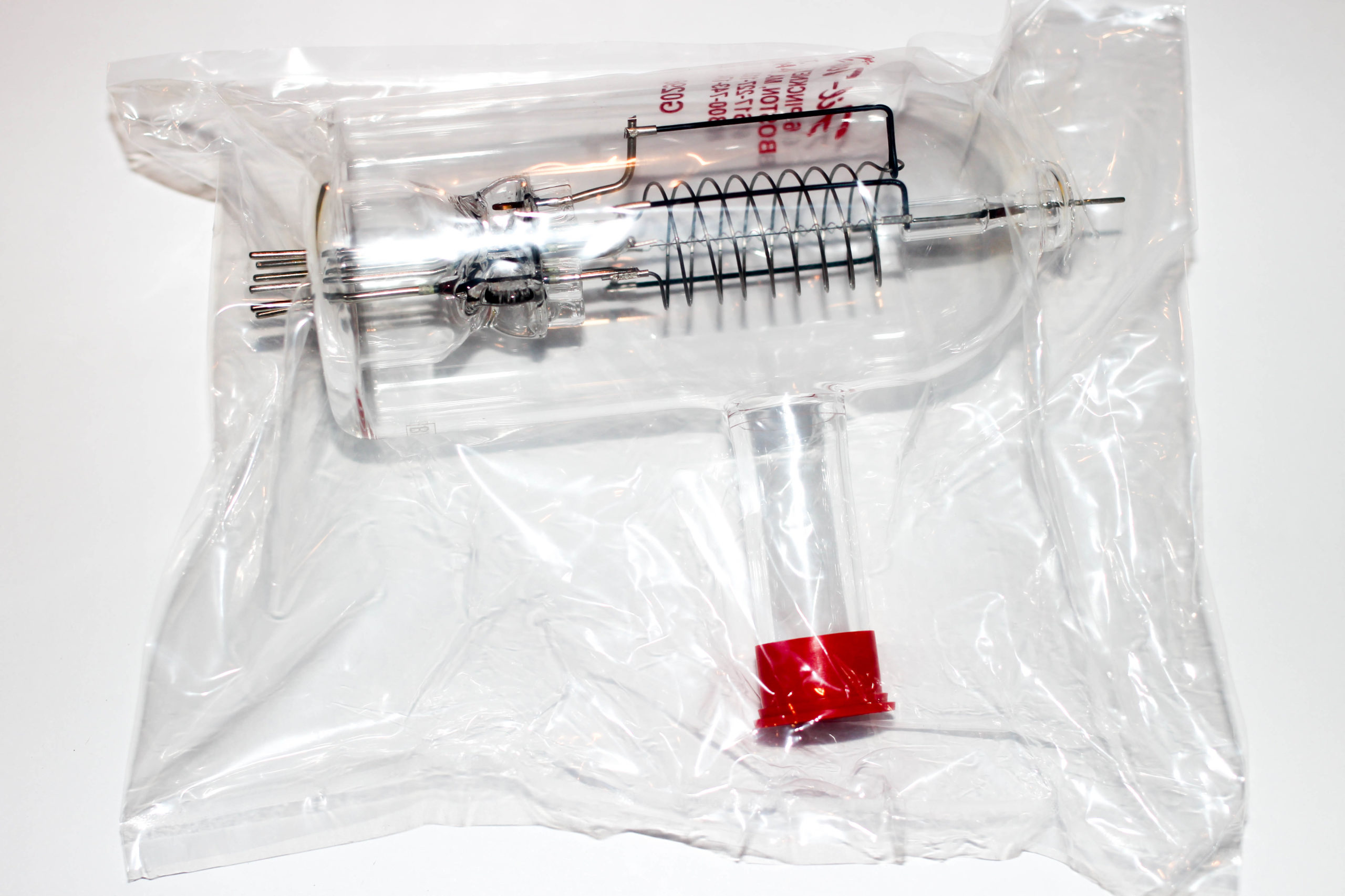

  • G75PTA

    3/4″ Pyrex, Twin Tungsten Filament, Brooks & Axcelis Style

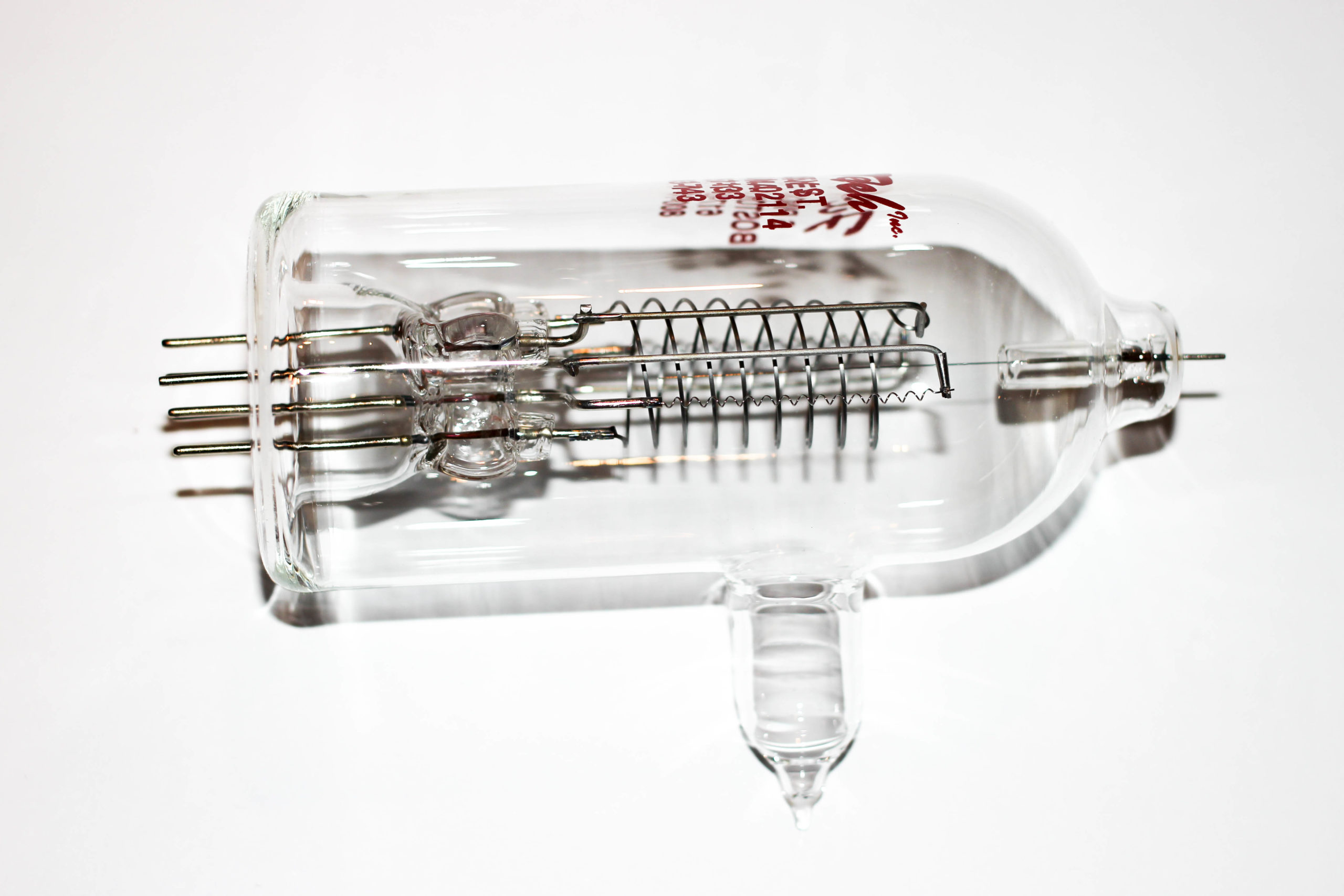

  • G75PTS

    3/4″ Pyrex, Twin Tungsten Filaments, Pumped and Sealed

  • G7631-2

    Axcelis Style, Ion Implantation
